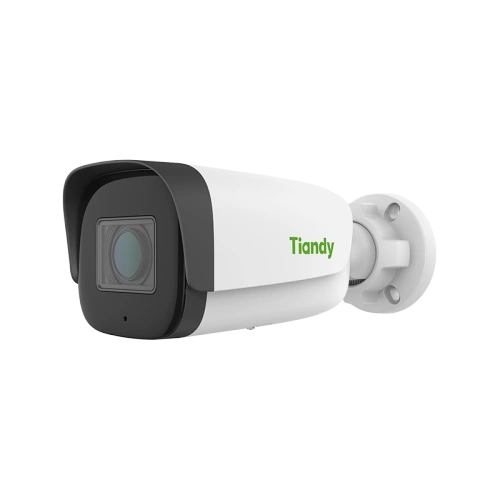

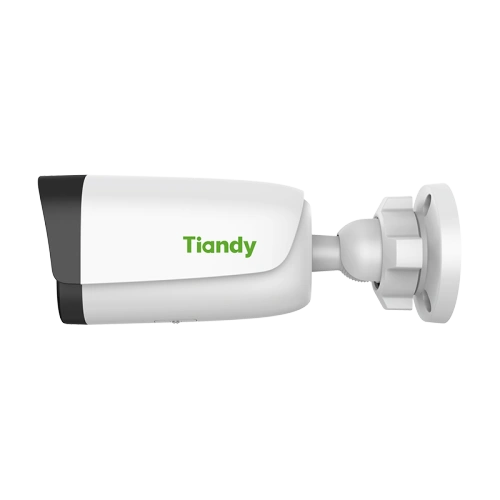

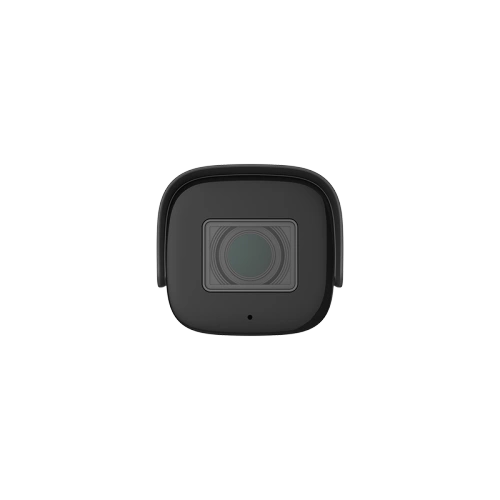

4MP Motorized IR Bullet Camera
TC-C34UN Spec:I8/A/E/Y/2.8-12mm/V4.2
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Camera | |
Image Sensor | 1/2.9″CMOS |
Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
Shutter Time | 1s~1/100000s |
Day&Night | IR-cut filter with auto Switch (ICR) |
Smart IR | Yes |
WDR | 120dB |
S/N | >40dB |
Angle Adjustment | 0~360°(P); 0~90°(T); 0~360°(R) |
Lens | |
Lens Type | Motorized |
Focal Length | 2.8~12mm |
Lens Mount | Φ14 |
Aperture Range | F1.6 |
Aperture Type | Fixed |
Field of View | 104.7°~30.3°(H); 56.5°~17.2°(V); 120.9°~34.8°(D) |
DORI Distance | W: Detect:56.0m Observe:22.2m Recognize:11.2m Identify:5.6m T: Detect:240.0m Observe:95.2m Recognize:48.0m Identify:24.0m |
Illuminator | |
IR LEDs | 4 |
IR Distance | Up to 80m |
Wavelength | 850nm |
Compression Standard | |
Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate | 32k~6Mbps |
Audio Compression | G.711A/G.711U |
Audio Sampling Rate | 8kHz |
Image | |
Max. Resolution | 4MP,2688×1520@25fps |
Main Stream | PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24(2688×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
BLC | Yes |
HLC | Yes |
AGC | Yes |
3D DNR | Yes |
White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
ROI | 8 rectangular static areas |
OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
Privacy Mask | 4 black static areas |
Defog | Yes |
Feature | |
General Alarm | Motion Detection; Mask Alarm |
Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict |
Linkage Method | Trigger Recording; Trigger Capture; Notify Surveillance Center |
Video Analytics | Tripwire; Perimeter |
Rules of Behavior Analyse In 1 Scene | 2 |
Network | |
ANR | Yes |
Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; FTP |
System Compatibility | P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP |
Remote Connection | ≤2 |
Client | Easy7 VMS |
Moblie Client | EasyLive Plus |
Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Interface | |
Communication Interface | 1*RJ-45 (10/100 Base-T) |
Built-in Mic | Yes |
Reset Button | Yes |
On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
RTC | Yes |
General | |
Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
Operating Temperature | -30℃~60℃(-22℉~140℉) |
Operating Humidity | ≤95%RH |
Storage Temperature | -30℃~60℃(-22℉~140℉) |
Storage Humidity | 10%~95%RH(non-condensing) |
Power Supply | DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max. 7W |
Protection | Surge4000V; ESD6000V; IP67 |
Boundary Dimensions | 204(L)84(W)76(H)mm |
Package Dimensions | 215(L)95(W)120(H)mm |
GrossWeight | 0.57kg |
