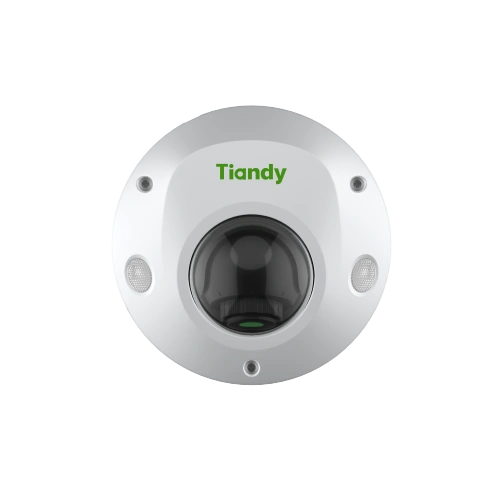

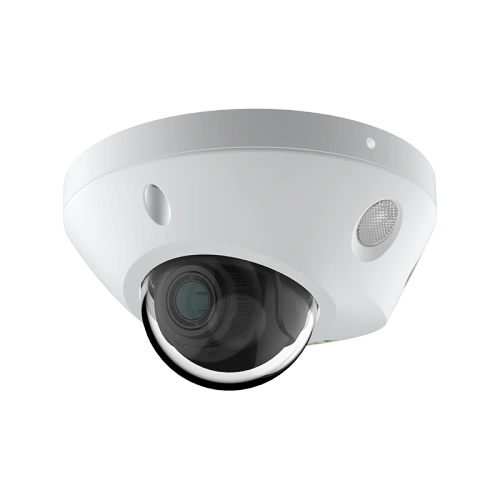

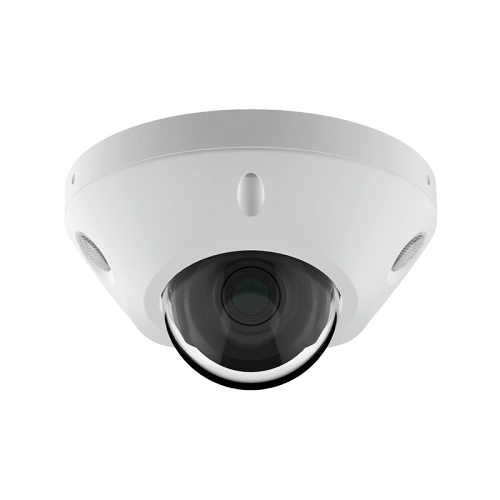

2MP Fixed IR Dome Camera

د.ع100,000

3 products sold in last 11 hours
Selling fast! Over 7 people have in their cart

TC-C32PS Spec:I3/E/Y/M/H/2.8mm/V4.2

2MP FOR LIFT B+W
20 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Camera

Image Sensor

1/2.8″CMOS

Min. Illumination

Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart IR

Yes

WDR

120dB

S/N

>42dB

Angle Adjustment

-22.5~22.5°(P); 0~75°(T); 0~360°(R)

Lens

Lens Type

Fixed focal lens

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F1.6

Aperture Type

Fixed

Field of View

104.9°(H); 56.5°(V); 119.2°(D)

DORI Distance

Detect:38.5m Observe:15m Recognize:7.5m Identify:3.5m

Illuminator

IR LEDs

2

IR Distance

Up to 30m

Wavelength

850nm

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video Bit Rate

32k~8Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

2MP,1920×1080@30fps

Main Stream

PAL:25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480)

Sub Stream

PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)

Third Stream

PAL:25fps(704×576, 704×288, 352×288) NTSC:30fps(704×480, 704×240, 352×240)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

ROI

8 rectangular static areas

Corridor Mode

Yes

OSD

Overlay of additional characters in 5 regions, 1 line, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64

Picture Overlay

1*200×200 size BMP 16 color bit image overlay

Privacy Mask

4 black static areas

Defog

Yes

Feature

General Alarm

Motion Detection; Mask Alarm; Alarm Input

Exceptions Alarm

Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception

Linkage Method

Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output

Video Analytics

Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal

Rules of Behavior Analyse In 1 Scene

8

Face Mode

Face Capture

Face Detection Performance

Detect up to 8 faces at the same scene; Capture up to 4 faces at the same scene

Network

ANR

Yes

Protocols

HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP

System Compatibility

ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP

Remote Connection

≤7

Client

Easy7 VMS

Moblie Client

EasyLive Plus

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface

1*RJ-45 (10/100 Base-T)

Audio I/O

1; 1

Alarm I/O

1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC

Built-in Mic

Yes

Reset Button

Yes(Built-in)

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 512GB

RTC

Yes

General

Web Client Language

19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Operating Temperature

-40℃~65℃(-40℉~149℉)

Operating Humidity

≤95%RH

Storage Temperature

-40℃~65℃(-40℉~149℉)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max. 8W

Protection

Surge4000V; ESD6000V; IP66; IK08

Boundary Dimensions

110(L)110(W)60(H)mm

Package Dimensions

140(L)140(W)120(H)mm

GrossWeight

0.5kg
